An accessible parking sign assembly specifies a blue and white reflectorized porcelain steel sign with beaded text, featuring a half-inch radius and a minimum area of 70 square inches per California Building Code requirements. A van accessible sign plaque is mounted below where applicable. The assembly is installed with an 80-inch minimum clearance for freestanding posts or a 60-inch minimum clearance for wall-mounted installations measured to the top of the parking surface. A parking space emblem measuring 36 inches is centered in the stall within 6 inches of the centerline with its lower edge aligned with the stall entrance.

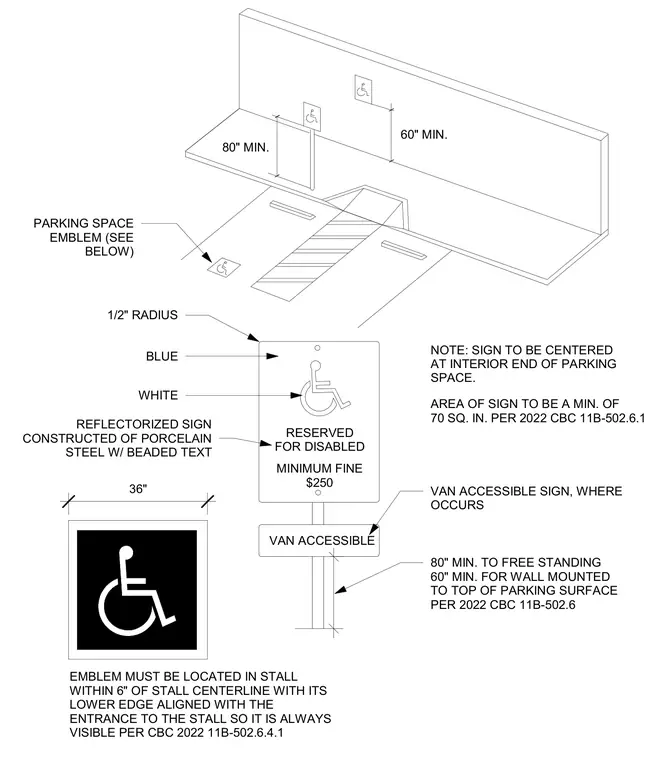

36" PARKING SPACE EMBLEM (SEE BELOW) 80" MIN. 60" MIN. 1/2" RADIUS BLUE WHITE REFLECTORIZED SIGN CONSTRUCTED OF PORCELAIN STEEL W/ BEADED TEXT RESERVED FOR DISABLED VAN ACCESSIBLE EMBLEM MUST BE LOCATED IN STALL WITHIN 6" OF STALL CENTERLINE WITH ITS LOWER EDGE ALIGNED WITH THE ENTRANCE TO THE STALL SO IT IS ALWAYS VISIBLE PER CBC 2022 11B-502.6.4.1 NOTE: SIGN TO BE CENTERED AT INTERIOR END OF PARKING SPACE. AREA OF SIGN TO BE A MIN. OF 70 SQ. IN. PER 2022 CBC 11B-502.6.1 VAN ACCESSIBLE SIGN, WHERE OCCURS 80" MIN. TO FREE STANDING 60" MIN. FOR WALL MOUNTED TO TOP OF PARKING SURFACE PER 2022 CBC 11B-502.6 MINIMUM FINE $250
