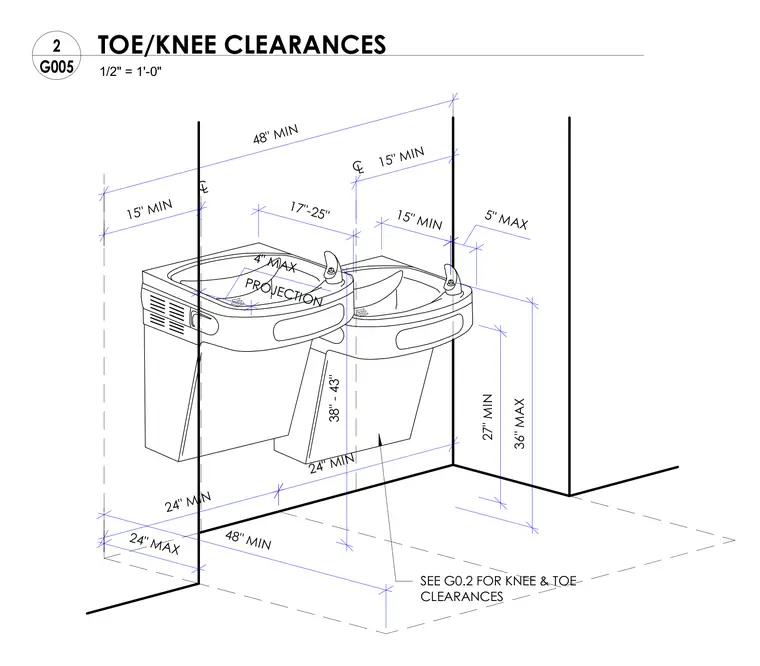

Accessibility dimensions for wall-mounted drinking fountains detail the required heights, projections, and clear floor spaces. A high-low fountain configuration is dimensioned with a spout height of thirty-eight to forty-three inches and a minimum knee clearance height of twenty-seven inches. Side clearances, wall projections, and centerline spacing conform to accessibility guidelines.
48" MIN 24" MIN 24" MIN 24" MAX 48" MIN 15" MIN 15" MIN 4" MAX PROJECTION 17"-25" 15" MIN 38" - 43" 36" MAX 27" MIN 5" MAX C L CL SEE G0.2 FOR KNEE & TOE CLEARANCES 1/2" = 1'-0" G005 2 TOE/KNEE CLEARANCES
