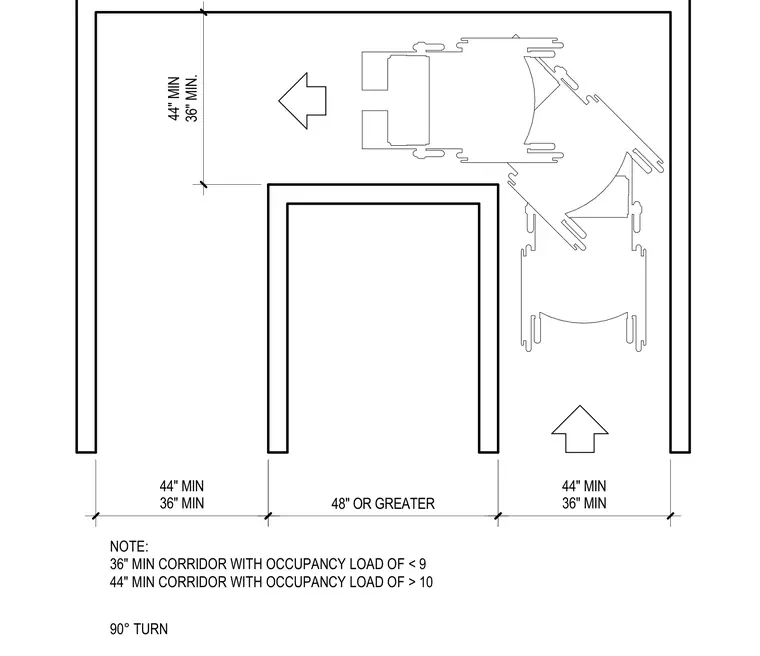

Minimum corridor widths of thirty-six inches and forty-four inches are indicated based on occupancy loads. A forty-eight inch or greater dimension is maintained at the turn configuration to accommodate wheelchair turning maneuvers.
44" MIN 36" MIN. NOTE: 36" MIN CORRIDOR WITH OCCUPANCY LOAD OF < 9 44" MIN CORRIDOR WITH OCCUPANCY LOAD OF > 10 44" MIN 36" MIN 48" OR GREATER 44" MIN 36" MIN 90° TURN
