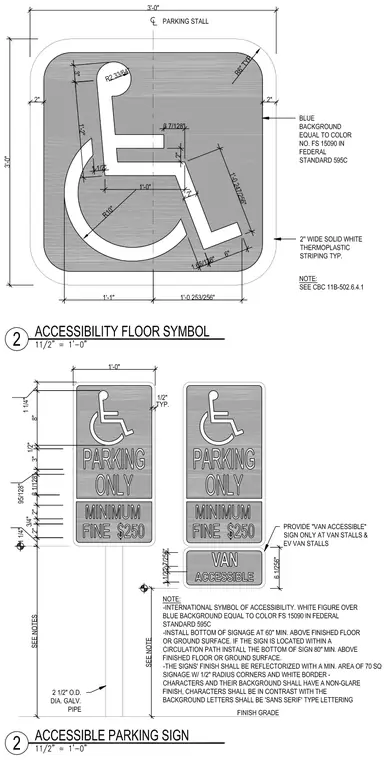

Accessibility pavement markings and vertical signage configurations feature standard international accessibility symbols with blue backgrounds equal to color Federal Standard FS 15090 and solid white thermoplastic striping. Vertical signs mount on two-and-a-half-inch outside diameter galvanized steel pipes with van accessible sign add-ons provided at designated van stalls. Signage installations maintain minimum clearance heights above finished floor or ground surfaces per accessibility codes.
