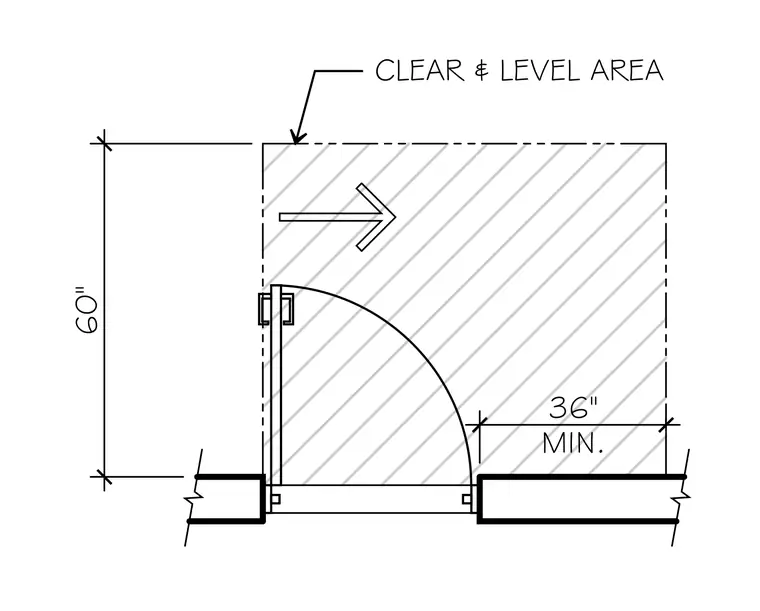

A clear and level floor area is required adjacent to the door opening, measuring a minimum of sixty inches in one direction and thirty-six inches minimum beyond the latch side. This hatched clearance zone ensures adequate maneuvering space for accessibility compliance at swinging doors.
CLEAR & LEVEL AREA 60" 36" MIN. n u ff ■HJ I
