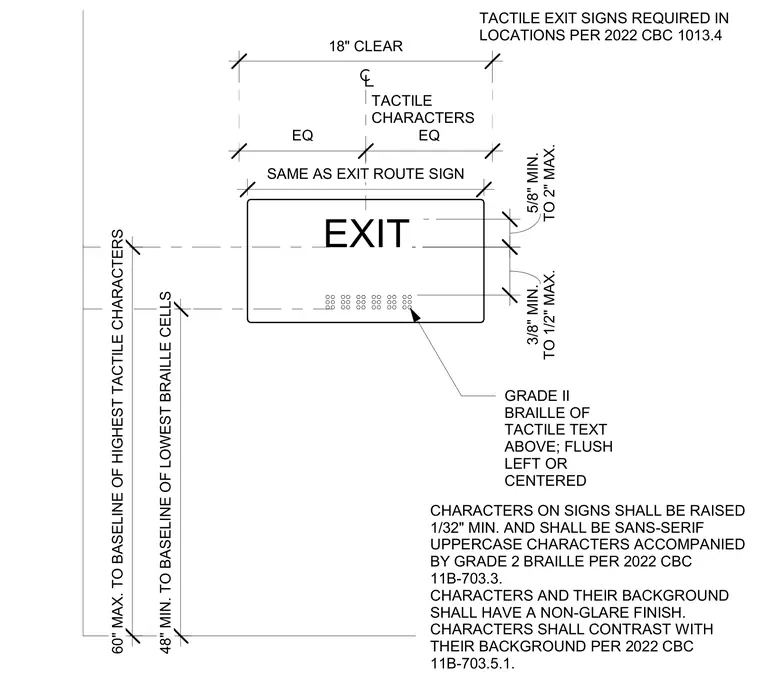

Tactile exit signs feature raised sans-serif uppercase characters accompanied by Grade 2 Braille. Characters are raised a minimum of 1/32 inch and utilize a non-glare finish with visual contrast against the background. Sign installation height ranges from 48 inches minimum to the baseline of the lowest Braille cells, up to 60 inches maximum to the baseline of the highest tactile characters. Signs require an 18 inch clear space centered on the sign.
CHARACTERS ON SIGNS SHALL BE RAISED 1/32" MIN. AND SHALL BE SANS-SERIF UPPERCASE CHARACTERS ACCOMPANIED BY GRADE 2 BRAILLE PER 2022 CBC 11B-703.3. CHARACTERS AND THEIR BACKGROUND SHALL HAVE A NON-GLARE FINISH. CHARACTERS SHALL CONTRAST WITH THEIR BACKGROUND PER 2022 CBC 11B-703.5.1. EXIT GRADE II BRAILLE OF TACTILE TEXT ABOVE; FLUSH LEFT OR CENTERED 48" MIN. TO BASELINE OF LOWEST BRAILLE CELLS 60" MAX. TO BASELINE OF HIGHEST TACTILE CHARACTERS TO 1/2" MAX. 3/8" MIN. TO 2" MAX. 5/8" MIN. TACTILE EXIT SIGNS REQUIRED IN LOCATIONS PER 2022 CBC 1013.4 SAME AS EXIT ROUTE SIGN 18" CLEAR EQ EQ TACTILE CHARACTERS
