General · G-96PCY

Underwriters Laboratories Firestop System W-L-7130

About this detail

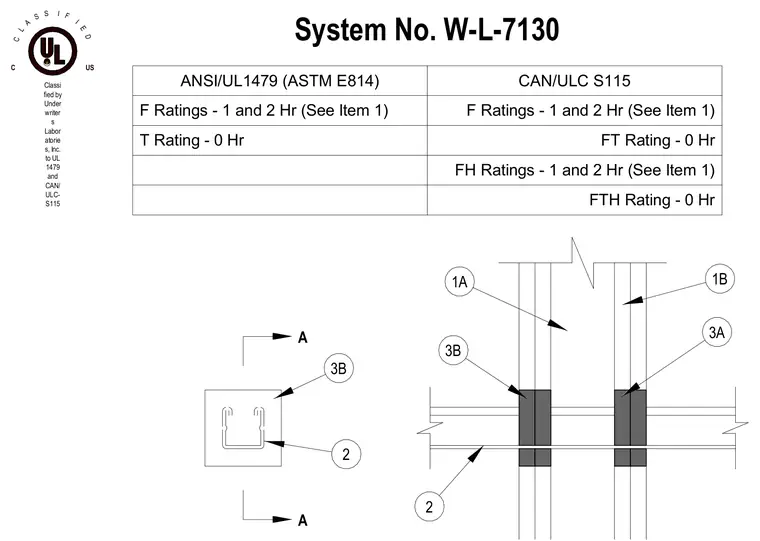

This drawing outlines Underwriters Laboratories firestop system number W-L-7130, providing one- and two-hour F ratings and zero-hour T, FT, and FTH ratings under ANSI/UL1479, ASTM E814, and CAN/ULC S115 standards. The diagram details component positions including items 1A, 1B, 2, 3A, and 3B across the tested assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
