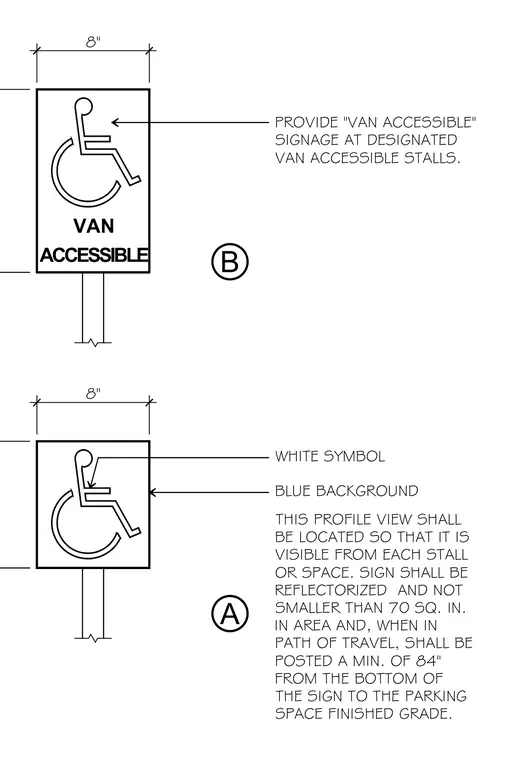

Accessible parking signs feature a white wheelchair accessibility symbol on a blue background and are designated as van accessible where required. The sign panel measures at least 70 square inches in area with an 8-inch width and must be reflectorized. When located in a path of travel, the bottom of the sign is mounted a minimum of 84 inches above the parking space finished grade.
VAN PROVIDE "VAN ACCESSIBLE" SIGNAGE AT DESIGNATED VAN ACCESSIBLE STALLS. WHITE SYMBOL BLUE BACKGROUND THIS PROFILE VIEW SHALL BE LOCATED SO THAT IT IS VISIBLE FROM EACH STALL OR SPACE. SIGN SHALL BE REFLECTORIZED AND NOT SMALLER THAN 70 SQ. IN. IN AREA AND, WHEN IN PATH OF TRAVEL, SHALL BE POSTED A MIN. OF 84" FROM THE BOTTOM OF THE SIGN TO THE PARKING SPACE FINISHED GRADE. A B 8" 8" 7^ 7^ <r o ACCESSIBLE ->•- o
