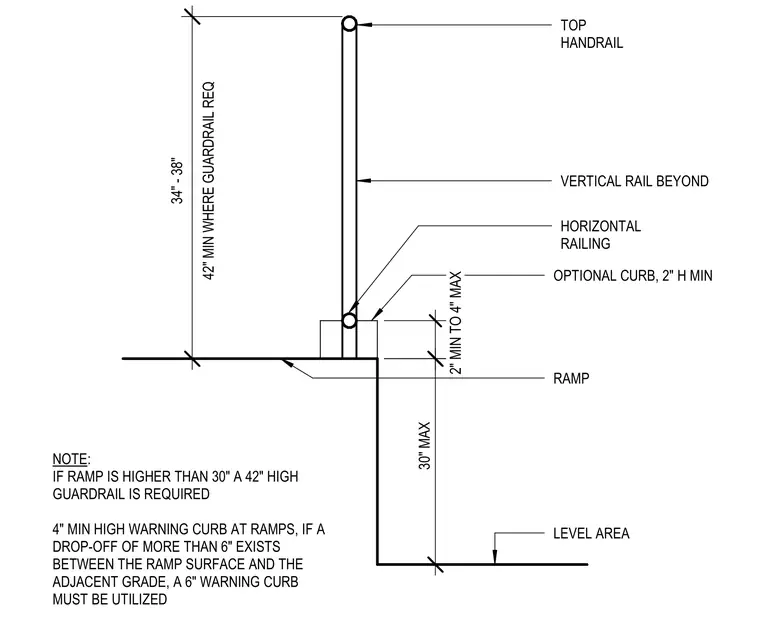

This section detail shows a ramp surface terminating at a drop-off with an optional two-inch minimum warning curb and horizontal railing. The top handrail is positioned between thirty-four and thirty-eight inches above the ramp surface. A forty-two inch minimum guardrail is required if the ramp height exceeds thirty inches. A four-inch minimum high warning curb is required if a drop-off of more than six inches exists between the ramp surface and adjacent grade.
42" MIN WHERE GUARDRAIL REQ 34" - 38" 30" MAX LEVEL AREA OPTIONAL CURB, 2" H MIN RAMP VERTICAL RAIL BEYOND TOP HANDRAIL NOTE: IF RAMP IS HIGHER THAN 30" A 42" HIGH GUARDRAIL IS REQUIRED 4" MIN HIGH WARNING CURB AT RAMPS, IF A DROP-OFF OF MORE THAN 6" EXISTS BETWEEN THE RAMP SURFACE AND THE ADJACENT GRADE, A 6" WARNING CURB MUST BE UTILIZED HORIZONTAL RAILING 2" MIN TO 4" MAX
