Areas beneath open stairs with reduced vertical clearance require a guard rail to prevent access into hazard areas. The underside of the stair creates an overhead obstruction where the vertical clearance falls below the minimum requirement. A protective barrier must be installed where the headroom clearance is twenty-seven inches maximum above the finished floor.

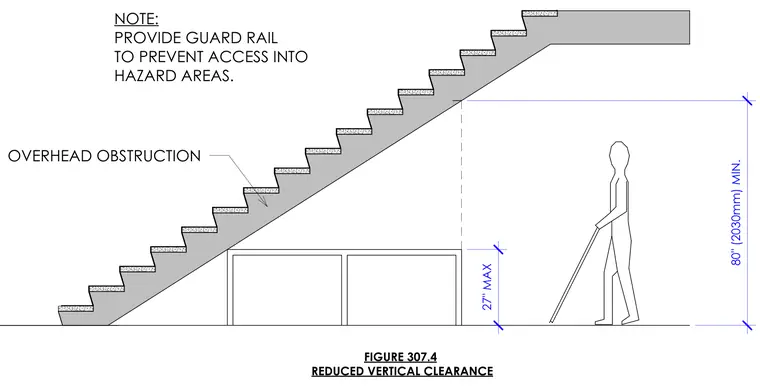

OVERHEAD OBSTRUCTION NOTE: PROVIDE GUARD RAIL TO PREVENT ACCESS INTO HAZARD AREAS. FIGURE 307.4 REDUCED VERTICAL CLEARANCE 80" (2030mm) MIN. 27" MAX
