Elevator Car Control Panel and Handrail Installation Heights

Elements

About this detail

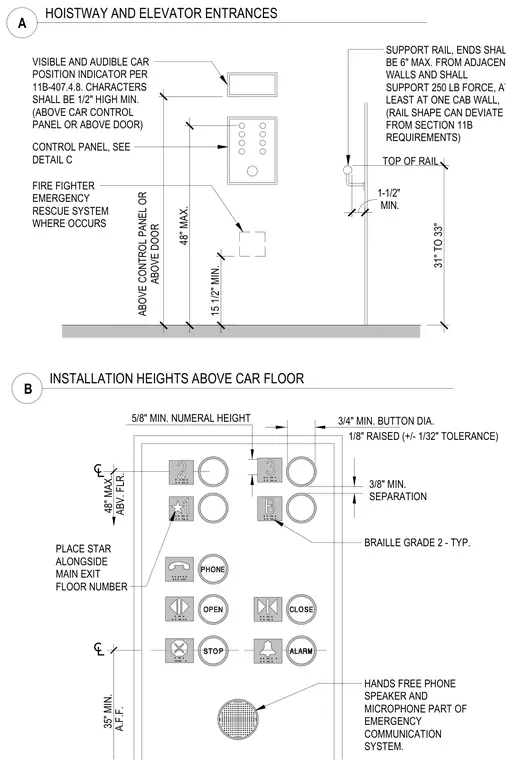

Elevator cab interior details show compliance requirements for control panels and handrail installation heights above the car floor. The control panel features buttons with a minimum three-quarter-inch diameter, one-eighth-inch raised characters, and Grade 2 Braille, positioned between thirty-five inches and forty-eight inches above the finished floor. A hands-free phone speaker, emergency communication system, and visible or audible car position indicators are located above the control panel or door. The support handrail is mounted thirty-one to thirty-three inches above the floor with a minimum one-and-a-half-inch clearance, designed to support a two-hundred-fifty-pound force. Fire fighter emergency rescue system requirements and main exit floor star designations are also indicated.
