G-8MZYS — T-Shaped Turning Space

General · G-8MZYS

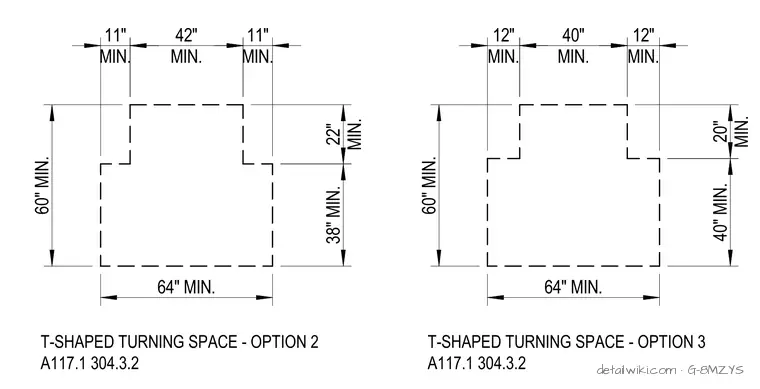

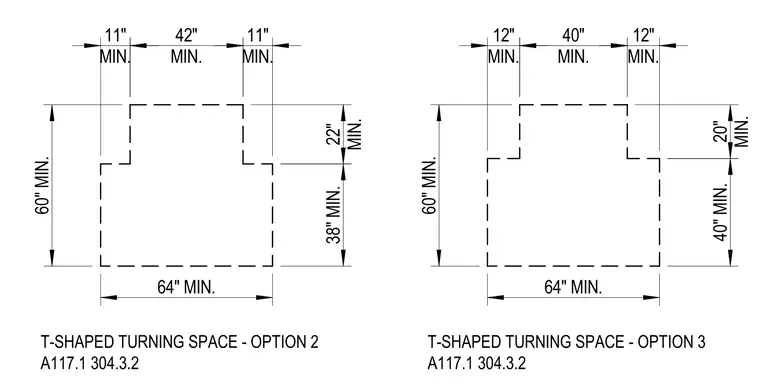

T-Shaped Turning Space

Units: imperial
Sheet: G7
Discipline: General

Materials

Stainless Steel

Text on the drawing

MIN. 11" MIN. 42" MIN. 11" MIN. 22" 60" MIN. 64" MIN. 38" MIN. T-SHAPED TURNING SPACE - OPTION 2 A117.1 304.3.2 MIN. 12" MIN. 40" MIN. 12" MIN. 20" 60" MIN. 64" MIN. 40" MIN. T-SHAPED TURNING SPACE - OPTION 3 A117.1 304.3.2

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
