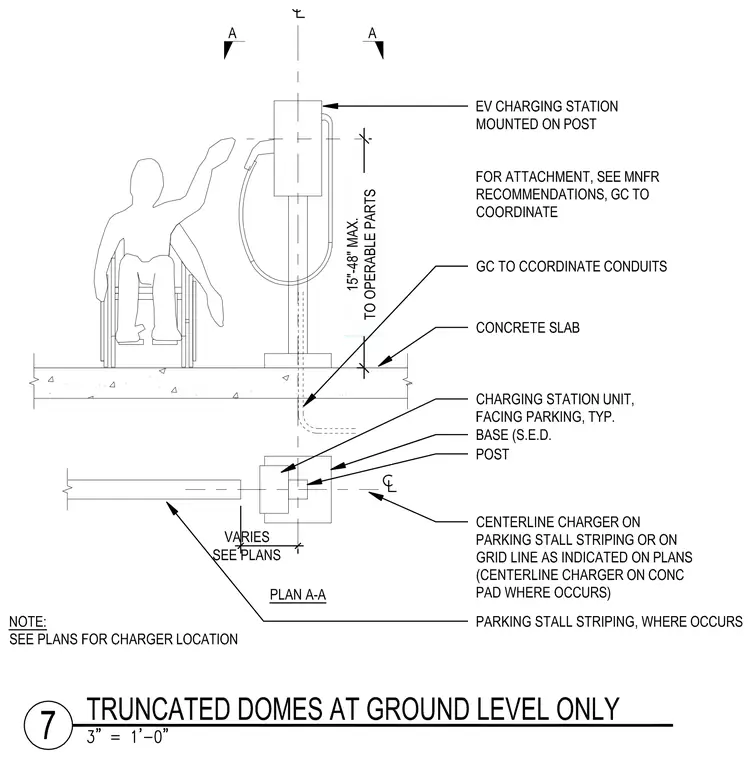

An electric vehicle charging station mounts on a post anchored to a concrete slab. Operable parts are positioned within a 15-inch to 48-inch maximum height range to meet accessibility requirements. Conduits route through the concrete slab per coordination with the general contractor. The charging unit faces the parking area, aligning with parking stall striping or grid lines as indicated on plans.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
