Architectural · G-8D2XT

Exit Stair - Wall Mounted Signage

Elements

About this detail

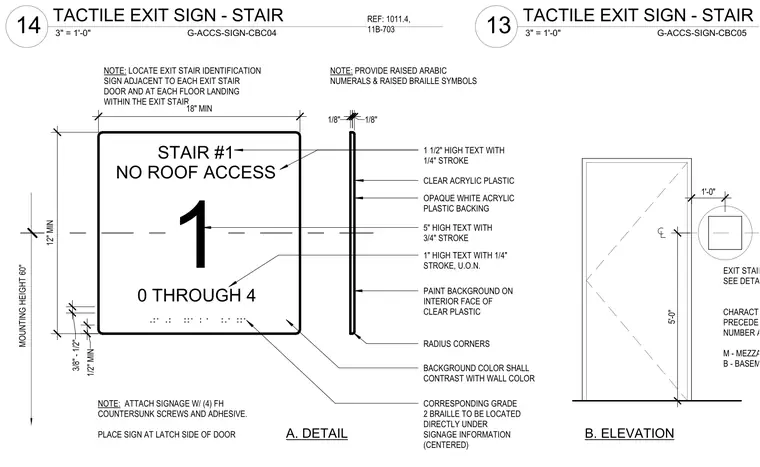

A tactile exit stair identification sign comprising a clear acrylic plastic face sheet with painted background on the interior face, backed by opaque white acrylic plastic. The sign features raised Arabic numerals and corresponding Grade 2 Braille located directly below the signage information, with radius corners and a contrasting background color. Typography includes 5-inch high text with 3/4-inch stroke, 1-1/2 inch high text with 1/4-inch stroke, and 1-inch high text with 1/4-inch stroke. The assembly is mounted at a height of 60 inches to the centerline on the latch side of the door using four flathead countersunk screws and adhesive.
