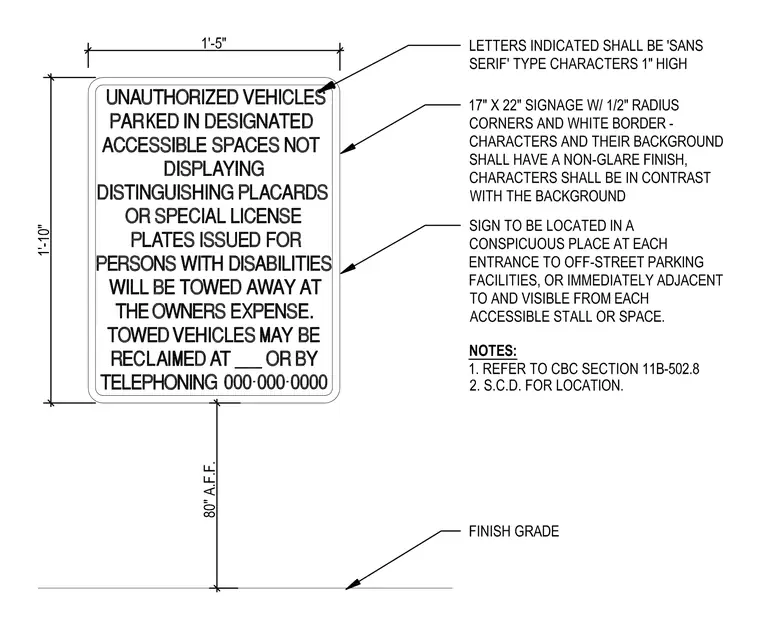

An accessible parking sign measuring seventeen inches by twenty-two inches features a one-half inch radius corner and white border with non-glare finish characters and background. The sign requires one-inch high sans serif characters stating that unauthorized vehicles parked in designated accessible spaces will be towed at the owner's expense. It mounts at a height of eighty inches above finished floor to the bottom of the sign in a conspicuous location at each parking facility entrance or adjacent to accessible stalls. Refer to California Building Code section 11B-502.8 and site civil drawings for exact location requirements.
