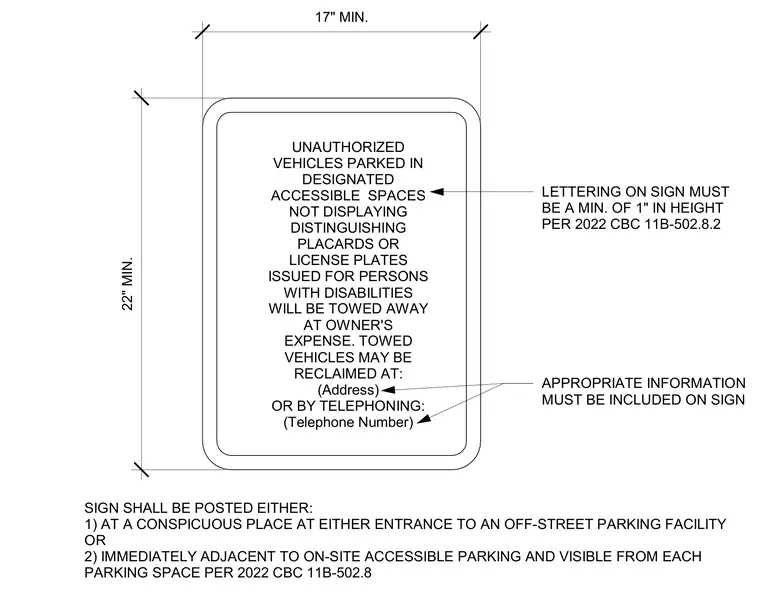

Accessible parking signage layout detailing required text, minimum sign dimensions, and placement criteria per 2022 California Building Code Section 11B-502.8. The sign measures a minimum of seventeen inches wide by twenty-two inches high and requires lettering at least one inch in height. Required text outlines towing policies for unauthorized vehicles in designated accessible spaces along with contact information for reclaiming towed vehicles. Additional notes specify installation requirements at either the entrance to an off-street parking facility or immediately adjacent to accessible parking spaces.
17" MIN. 22" MIN. UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT: (Address) OR BY TELEPHONING: (Telephone Number) LETTERING ON SIGN MUST BE A MIN. OF 1" IN HEIGHT PER 2022 CBC 11B-502.8.2 APPROPRIATE INFORMATION MUST BE INCLUDED ON SIGN SIGN SHALL BE POSTED EITHER: 1) AT A CONSPICUOUS PLACE AT EITHER ENTRANCE TO AN OFF-STREET PARKING FACILITY OR 2) IMMEDIATELY ADJACENT TO ON-SITE ACCESSIBLE PARKING AND VISIBLE FROM EACH PARKING SPACE PER 2022 CBC 11B-502.8
