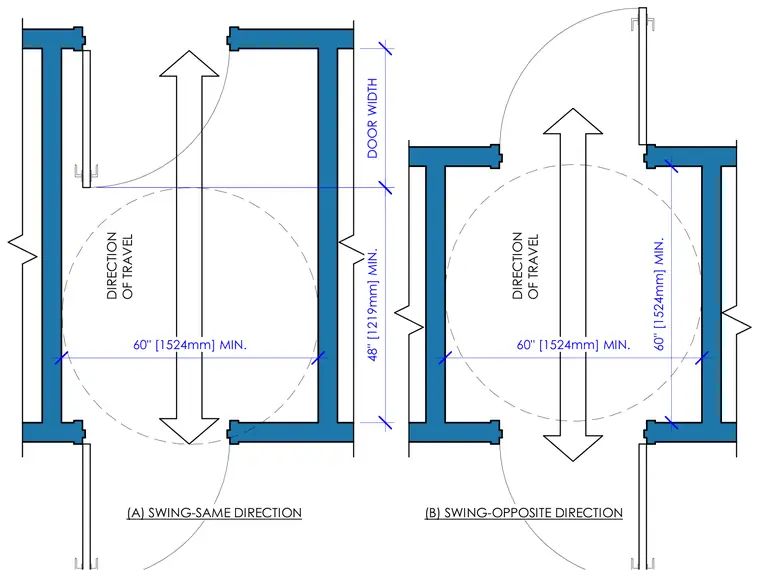

Two diagrams illustrate door clearance requirements for doors in series configured with either same-direction or opposite-direction swings. Diagram A shows doors swinging in the same direction, requiring a minimum sixty-inch clearance between the door in the closed position and the swing of the second door, with a minimum forty-eight-inch plus door width dimension. Diagram B shows doors swinging in opposite directions, requiring a minimum sixty-inch clearance between the two doors. Both configurations indicate the direction of travel and maintain turning space requirements.
(A) SWING-SAME DIRECTION (B) SWING-OPPOSITE DIRECTION 60" [1524mm] MIN. 60" [1524mm] MIN. 48" [1219mm] MIN. DOOR WIDTH 60" [1524mm] MIN. DIRECTION OF TRAVEL DIRECTION OF TRAVEL
