Accessible Reach Ranges and Clear Floor Space Requirements

Elements

About this detail

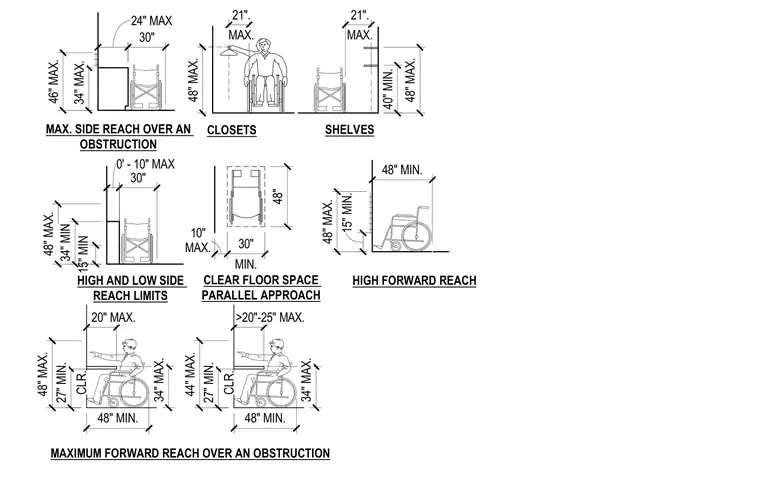

Accessible reach ranges and clear floor spaces establish required dimensions for high and low side reaches, side reaches over obstructions, high forward reaches, forward reaches over obstructions, closets, and shelves. Diagrams detail wheelchair clearances, including forty-eight-inch minimum floor spaces, thirty-inch by forty-eight-inch clear floor spaces for parallel approaches, twenty-seven-inch minimum knee clearances, and thirty-four-inch maximum counter or shelf heights. Maximum reach limits extend up to forty-eight inches while minimum reaches drop to fifteen inches, with obstruction depths limited to twenty to twenty-five inches maximum.
