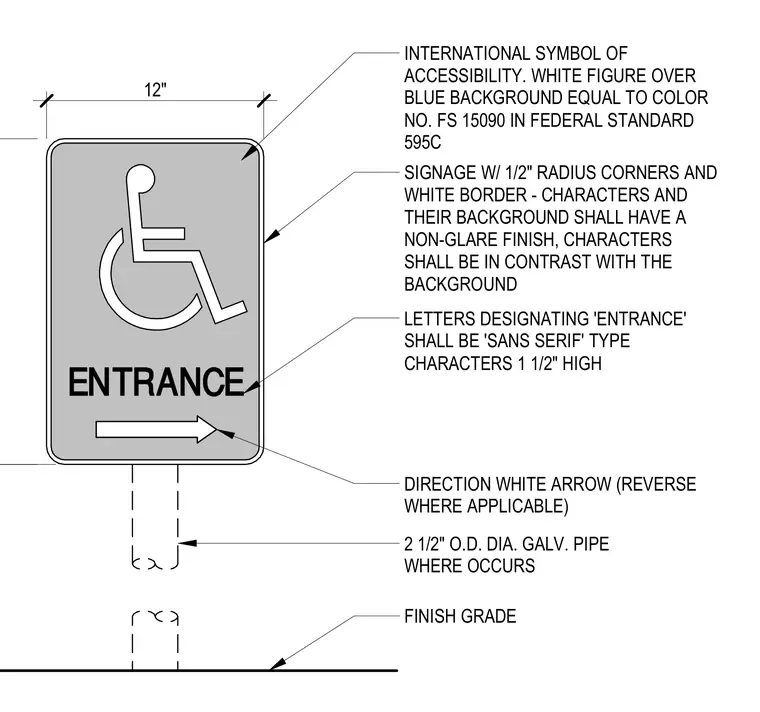

An accessible entrance sign features a white international symbol of accessibility and directional arrow over a blue background matching Federal Standard 595C color number 15090. The sign includes a white border and half-inch radius corners, with a non-glare finish on both characters and background. The lettering designating 'entrance' consists of sans serif type characters one and a half inches high in contrast with the background. The sign mounts on a two and a half inch outer diameter galvanized pipe secured above finish grade.
FINISH GRADE 2 1/2" O.D. DIA. GALV. PIPE WHERE OCCURS INTERNATIONAL SYMBOL OF ACCESSIBILITY. WHITE FIGURE OVER BLUE BACKGROUND EQUAL TO COLOR NO. FS 15090 IN FEDERAL STANDARD 595C SIGNAGE W/ 1/2" RADIUS CORNERS AND WHITE BORDER - CHARACTERS AND THEIR BACKGROUND SHALL HAVE A NON-GLARE FINISH, CHARACTERS SHALL BE IN CONTRAST WITH THE BACKGROUND LETTERS DESIGNATING 'ENTRANCE' SHALL BE 'SANS SERIF' TYPE CHARACTERS 1 1/2" HIGH DIRECTION WHITE ARROW (REVERSE WHERE APPLICABLE) 12"
