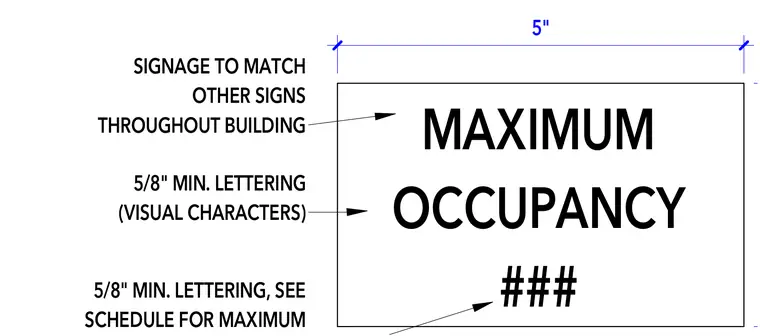

The maximum occupancy signage consists of 5-inch overall sign dimensions with 5/8-inch minimum lettering height for visual characters. The text reads MAXIMUM OCCUPANCY with variable numeric values determined by schedule. The signage matches other signs throughout the building.
MAXIMUM OCCUPANCY ### 5" SIGNAGE TO MATCH OTHER SIGNS THROUGHOUT BUILDING 5/8" MIN. LETTERING (VISUAL CHARACTERS) 5/8" MIN. LETTERING, SEE SCHEDULE FOR MAXIMUM
