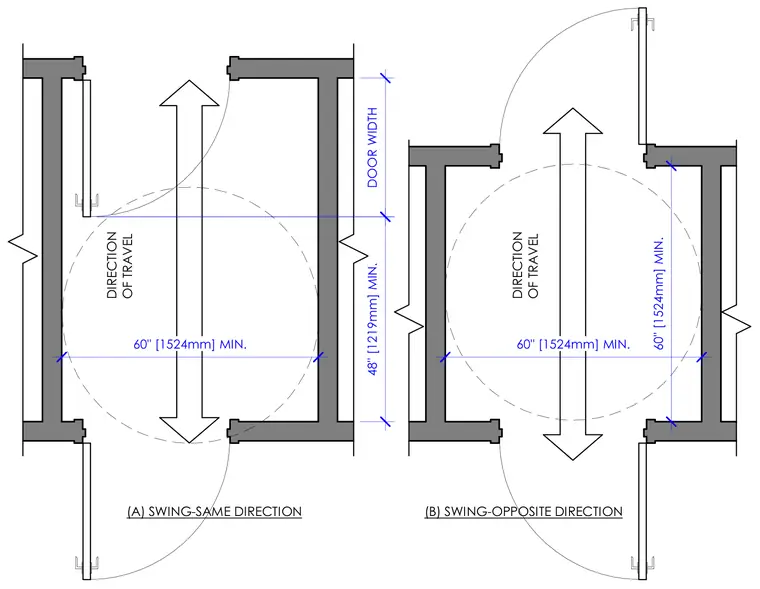

Accessible door clearances require a minimum sixty-inch turning space for wheelchair maneuverability depending on the direction of travel and door swing configuration. When doors swing in the same direction, a minimum forty-eight-inch width and sixty-inch clear depth are required alongside the door width. When doors swing in opposite directions, a minimum sixty-inch clearance is maintained across the direction of travel.
(A) SWING-SAME DIRECTION (B) SWING-OPPOSITE DIRECTION 60" [1524mm] MIN. 60" [1524mm] MIN. 48" [1219mm] MIN. DOOR WIDTH 60" [1524mm] MIN. DIRECTION OF TRAVEL DIRECTION OF TRAVEL
