A six-inch steel pipe filled with concrete and painted safety yellow stands on a ten-inch square by one-quarter-inch thick steel base plate. The base plate rests on a one-quarter-inch neoprene pad above the top of the paving or floor surface and is secured with four five-eighths-inch diameter anchor bolts with washers. An eight-inch thickened slab is provided at the bollard, except at existing floors or paving where the thickened slab requirement is removed. Joint sealant is applied all around the base plate.

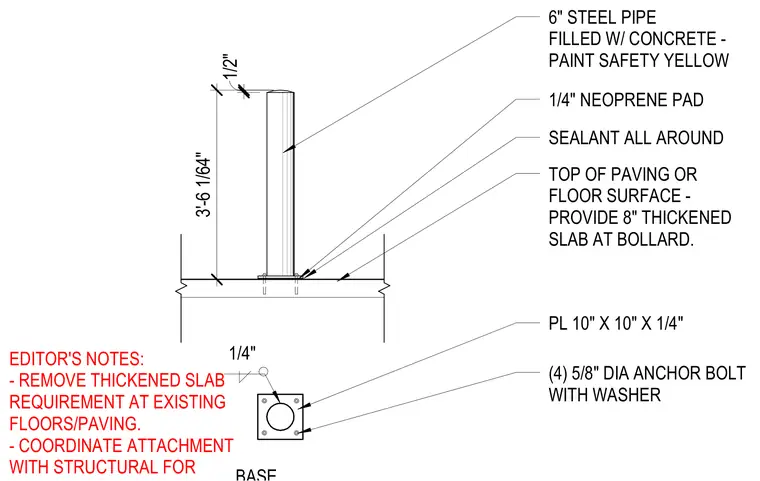

6" STEEL PIPE FILLED W/ CONCRETE - PAINT SAFETY YELLOW TOP OF PAVING OR FLOOR SURFACE - PROVIDE 8" THICKENED SLAB AT BOLLARD. PL 10" X 10" X 1/4" (4) 5/8" DIA ANCHOR BOLT WITH WASHER EDITOR'S NOTES: - REMOVE THICKENED SLAB REQUIREMENT AT EXISTING FLOORS/PAVING. - COORDINATE ATTACHMENT WITH STRUCTURAL FOR 1/4" 3'-6 1/64" 1/2" 1/4" NEOPRENE PAD SEALANT ALL AROUND
