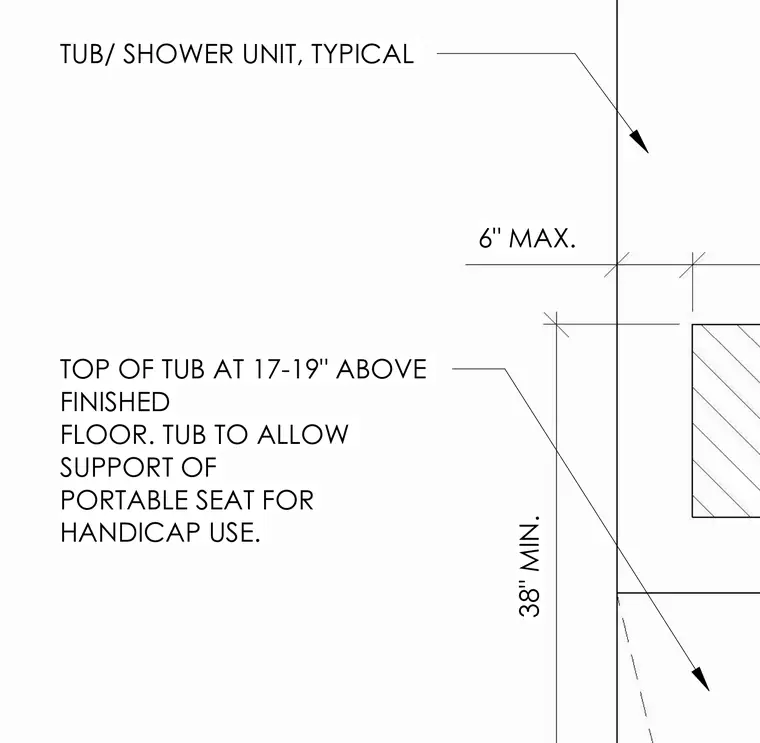

The top of the tub is positioned seventeen to nineteen inches above the finished floor. The tub unit is designed to accommodate the support of a portable seat for handicap use.
6" MAX. 38" MIN. TOP OF TUB AT 17-19" ABOVE FINISHED FLOOR. TUB TO ALLOW SUPPORT OF PORTABLE SEAT FOR HANDICAP USE. TUB/ SHOWER UNIT, TYPICAL
