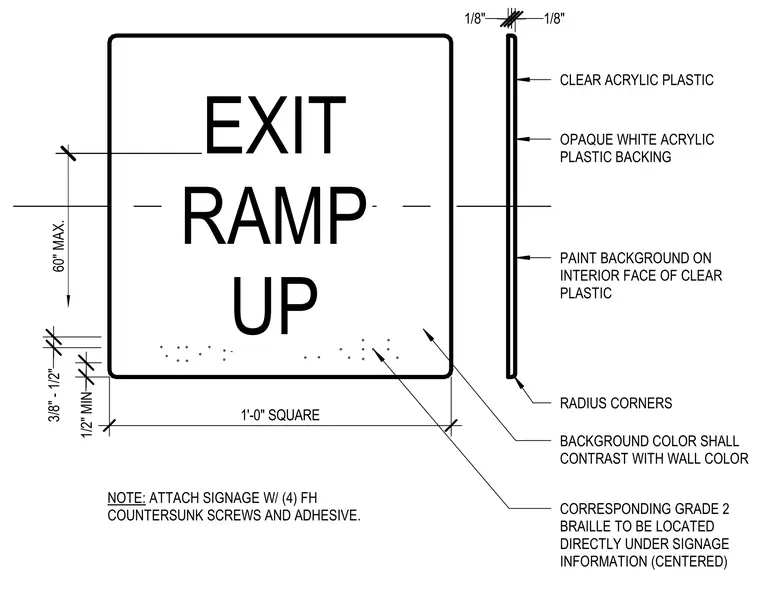

This assembly consists of a one-foot square clear acrylic plastic faceplate with radius corners and a painted background on its interior face backed by an opaque white acrylic panel. Corresponding Grade 2 braille is located directly centered under the signage information. The sign is attached to the wall using four flathead countersunk screws and adhesive, positioned at a maximum height of sixty inches.
EXIT RAMP UP 1/8" 1/8" 1'-0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX.
