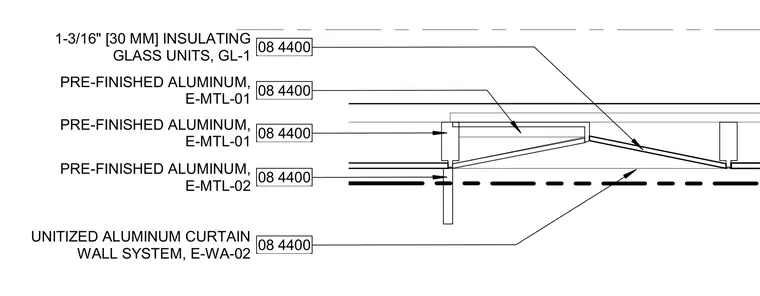

The assembly features a unitized aluminum curtain wall system installed with one-and-three-sixteenth-inch insulating glass units designated as GL-1. Pre-finished aluminum components designated as E-MTL-01 and E-MTL-02 form the framing members and trims of the system. The curtain wall framing provides structural support and weather sealing for the vision glass panels.
08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 08 4400 UNITIZED ALUMINUM CURTAIN WALL SYSTEM, E-WA-02
