Architectural · G-797R4

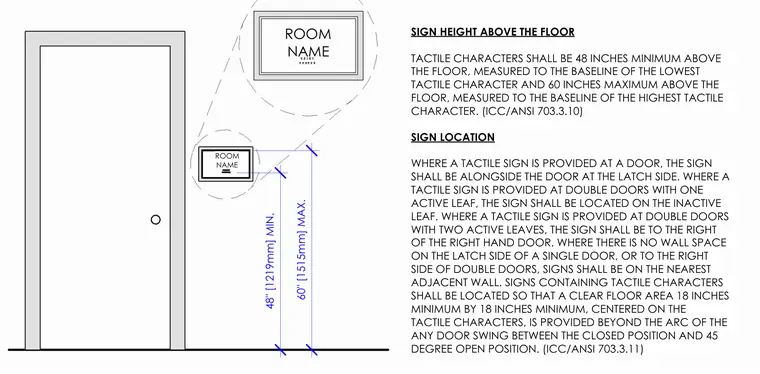

ADA Tactile Sign Mounting Height and Location Diagram

Materials

Elements

About this detail

Tactile characters on room identification signs must be mounted with the lowest baseline at forty-eight inches minimum and the highest baseline at sixty inches maximum above the finished floor, measured per ICC/ANSI 703.3.10. The sign is positioned alongside the door on the latch side for single doors, on the inactive leaf for single-active double doors, or to the right of the right-hand leaf for double-active doors. A clear floor area measuring eighteen inches minimum by eighteen inches minimum, centered on the tactile characters, must be provided beyond the door swing arc between the closed position and forty-five degrees open per ICC/ANSI 703.3.11.
