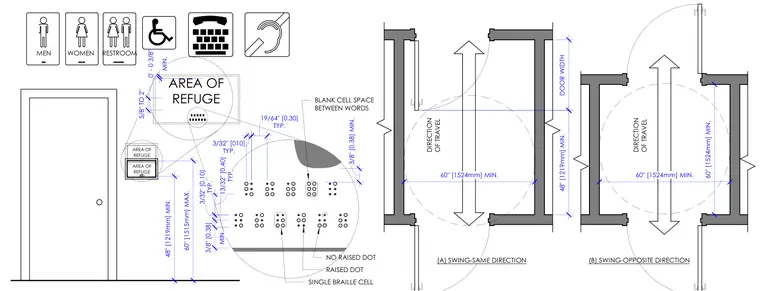

This drawing outlines typical dimensions and layout requirements for ADA-compliant signage, tactile characters, and area of refuge clearances. Braille cell spacing, raised dot dimensions, and character placement heights are detailed with precise fractional measurements. Door clearance diagrams illustrate minimum turning spaces and travel directions for both same-direction and opposite-direction door swings.
AREA OF REFUGE 48" [1219mm] MIN. 60" [1515mm] MAX. AREA OF REFUGE MEN WOMEN RESTROOM AREA OF REFUGE MIN. 0' - 0 3/8" 5/8" TO 2" 3/8" [0.38] MIN. BLANK CELL SPACE BETWEEN WORDS NO RAISED DOT TYP. 19/64" [0.30] TYP. 3/32" [010] TYP. 13/32" [0.40] TYP. 3/32" [0.10] MIN. 3/8" [0.38] RAISED DOT SINGLE BRAILLE CELL (A) SWING-SAME DIRECTION (B) SWING-OPPOSITE DIRECTION 60" [1524mm] MIN. 60" [1524mm] MIN. 48" [1219mm] MIN. DOOR WIDTH 60" [1524mm] MIN. DIRECTION OF TRAVEL DIRECTION OF TRAVEL
