General · G-6SAQ4

UL Firestop System for Cable Penetration

Elements

About this detail

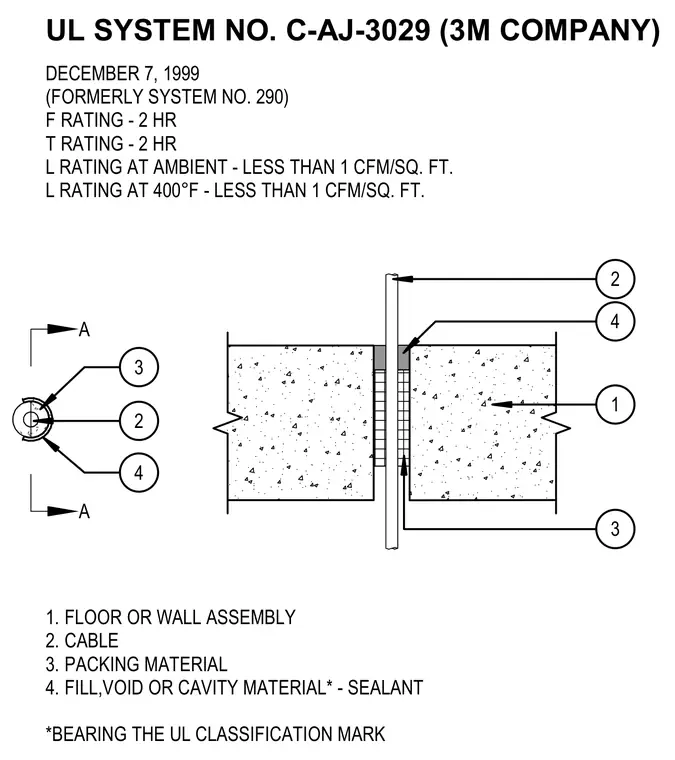

A cable penetrates a floor or wall assembly through an opening sealed with packing material and fill, void, or cavity sealant. The penetration achieves a 2-hour F rating and a 2-hour T rating, with specified ambient and high-temperature L ratings. Component callouts identify the concrete floor or wall assembly, the penetrating cable, the internal packing material, and the UL-classified sealant at the surface.
