Typical Signage Dimensions and Layout

Elements

About this detail

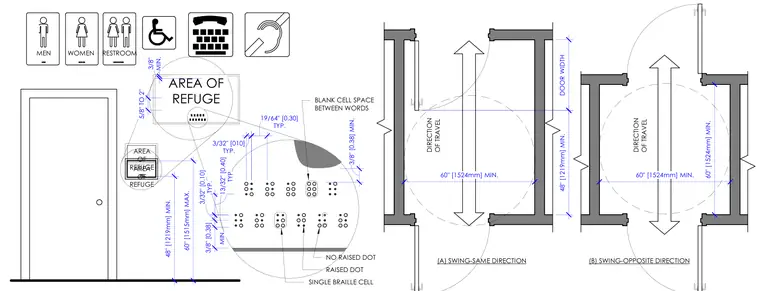

This drawing outlines typical dimensions, mounting heights, and Braille character specifications for architectural signage, including area of refuge signs and restroom identifications. Detailed Braille cell layouts specify dot dimensions, spacing between raised dots, blank cell spacing, and minimum margins of 3/8 inch. Plan diagrams illustrate door swing clearances for area of refuge doorways, showing swing-same direction and swing-opposite direction layouts with sixty-inch minimum turning circles and door widths of forty-eight inches minimum.
