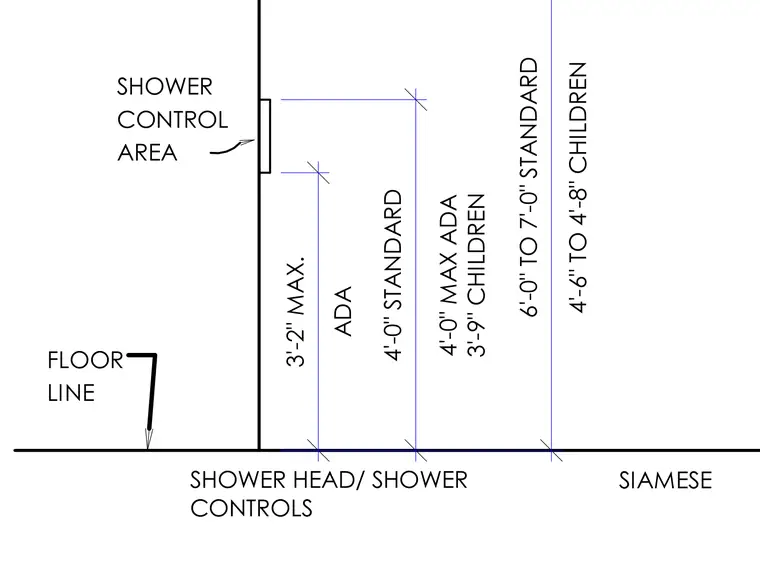

The shower control area mounts at a maximum height of three feet two inches for ADA compliance or four feet zero inches for standard applications. Shower heads install at heights ranging from six feet zero inches to seven feet zero inches for standard use, or four feet six inches to four feet eight inches for children. A maximum height of four feet zero inches applies to ADA shower heads, while children's shower controls sit at three feet nine inches above the floor line.
3'-2" MAX. ADA 4'-0" STANDARD 4'-0" MAX ADA 3'-9" CHILDREN 6'-0" TO 7'-0" STANDARD 4'-6" TO 4'-8" CHILDREN CONTROL AREA SHOWER FLOOR LINE SIAMESE SHOWER HEAD/ SHOWER CONTROLS
