Architectural · G-6C2JW

Signage Mounting Locations

Materials

Elements

About this detail

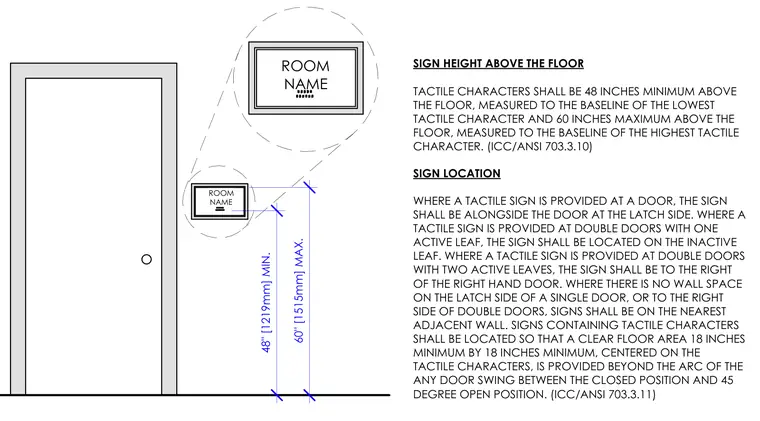

Tactile characters shall be mounted forty-eight inches minimum above the floor to the baseline of the lowest character and sixty inches maximum to the baseline of the highest character. Signs at single doors shall be located alongside the door on the latch side. Signs at double doors with one active leaf shall be located on the inactive leaf, and on the right side of the right-hand door for double doors with two active leaves. Where wall space is lacking on the latch side, signs shall be placed on the nearest adjacent wall. A clear floor area measuring eighteen inches minimum by eighteen inches minimum centered on the tactile characters must be provided beyond the door swing arc.
