General · G-6BVQ2

Elevator Car Control Panel Detail

Materials

Elements

Doors Floors / Slabs Entrances Connections / Plates

About this detail

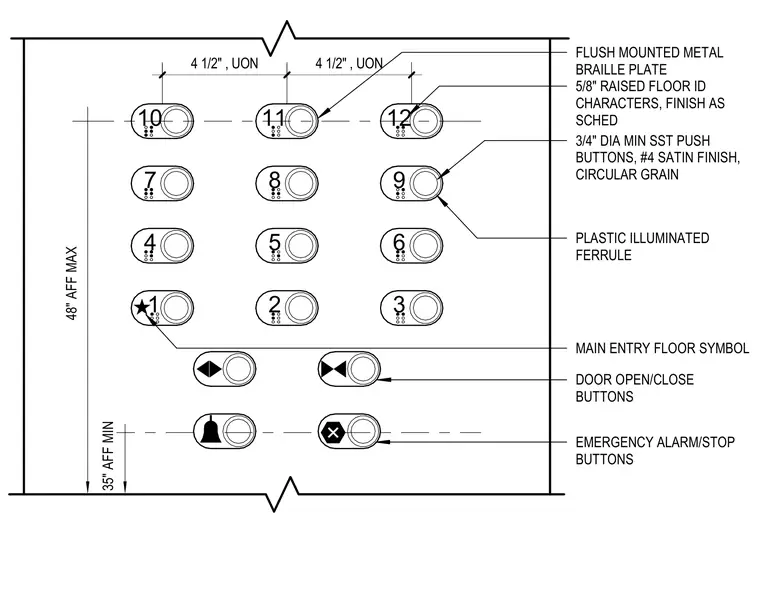

A flush mounted metal braille plate assembly features three-quarter inch diameter minimum stainless steel push buttons with number four satin finish and circular grain. Plastic illuminated ferrules, raised floor identification characters, main entry floor symbols, door open and close buttons, and emergency alarm and stop buttons comprise the layout. Dimensions specify a thirty-five inch above finished floor minimum and forty-eight inch above finished floor maximum mounting height with four and one-half inch spacing unless otherwise noted.
