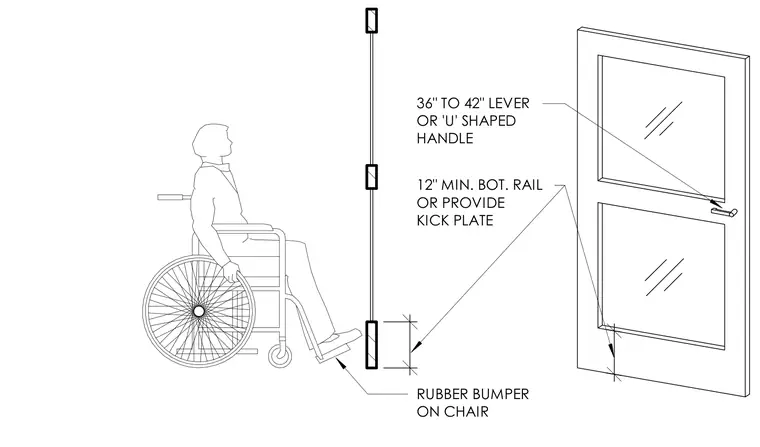

Accessible door requirements specify a lever or U-shaped handle mounted thirty-six to forty-two inches above the finished floor. The door bottom rail requires a minimum twelve-inch height or a kick plate to prevent wheelchair damage. A rubber bumper on the wheelchair footrest protects the lower door assembly.
36" TO 42" LEVER OR 'U' SHAPED HANDLE 12" MIN. BOT. RAIL OR PROVIDE KICK PLATE RUBBER BUMPER ON CHAIR
