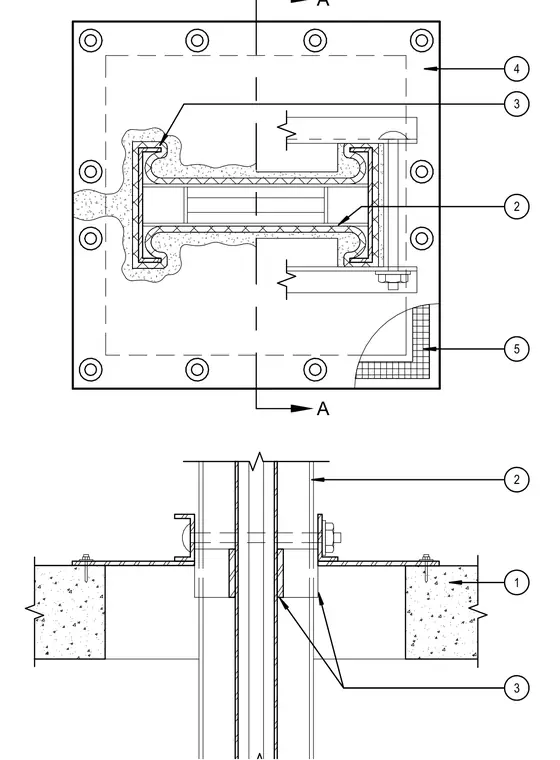

Underwriters Laboratories classification assembly showing a structural penetration through a rated wall or floor system with perimeter framing and fireproofing materials. The assembly includes steel structural elements protected by spray-applied or wrapped fireproofing insulation and anchored with perimeter fasteners. Detail views provide plan and section perspectives of the penetration seal.
