The wall assembly comprises studs and gypsum board. Through-penetrants include optical fiber and communication cable raceways and cables. The firestop system utilizes fill, void, or cavity materials.

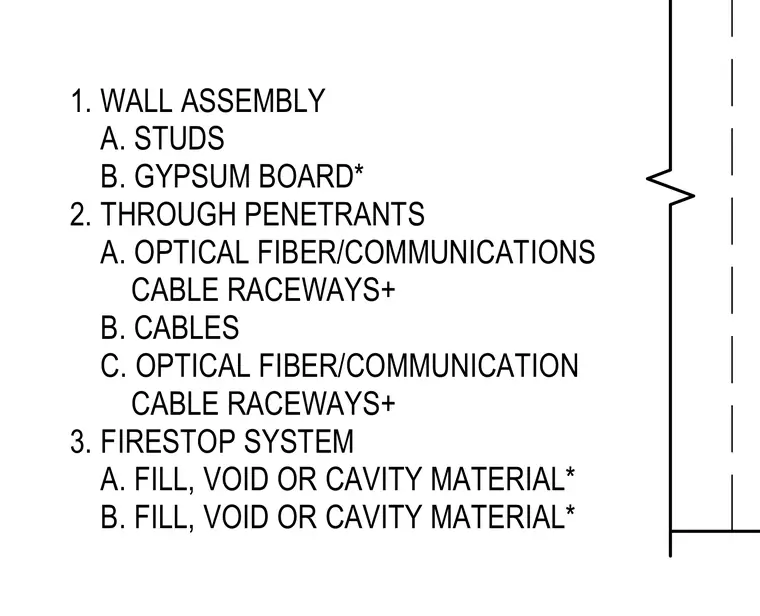

1. WALL ASSEMBLY A. STUDS B. GYPSUM BOARD* 2. THROUGH PENETRANTS A. OPTICAL FIBER/COMMUNICATIONS CABLE RACEWAYS+ B. CABLES C. OPTICAL FIBER/COMMUNICATION CABLE RACEWAYS+ 3. FIRESTOP SYSTEM A. FILL, VOID OR CAVITY MATERIAL* B. FILL, VOID OR CAVITY MATERIAL*
