General · G-5BET2

UL System Wall Penetration Firestop Detail

Materials

Elements

About this detail

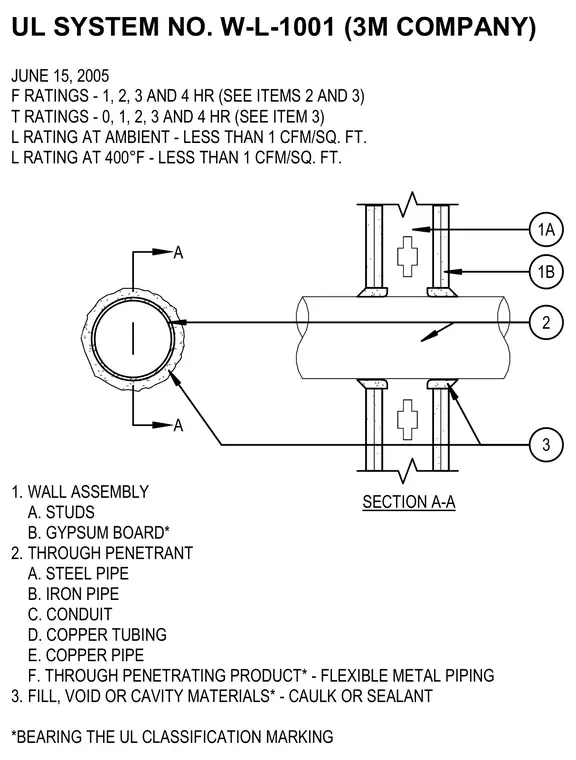

UL System No. W-L-1001 for wall penetrations carrying steel pipes, iron pipes, conduits, copper tubing, copper pipes, or flexible metal piping through a stud and gypsum board wall assembly. The annular space between the penetrant and the wall is sealed with a fill, void, or cavity material consisting of caulk or sealant bearing the UL classification marking. The assembly achieves F-ratings of one, two, three, and four hours, T-ratings from zero to four hours, and low air leakage ratings at ambient and four hundred degrees Fahrenheit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
