Code-compliant mounting heights and horizontal extensions apply to wall-mounted and post-mounted stair handrails. The top gripping surface of the handrail must be positioned between thirty-four and thirty-eight inches vertically above the stair nosing. Handrails require extensions of twelve inches minimum plus one tread depth at the top landing and twelve inches minimum at the bottom landing. Clear space between the wall and the handrail must be maintained at one and one-half inches minimum. Visually impaired warning striping with contrasting colors is required on stair treads.

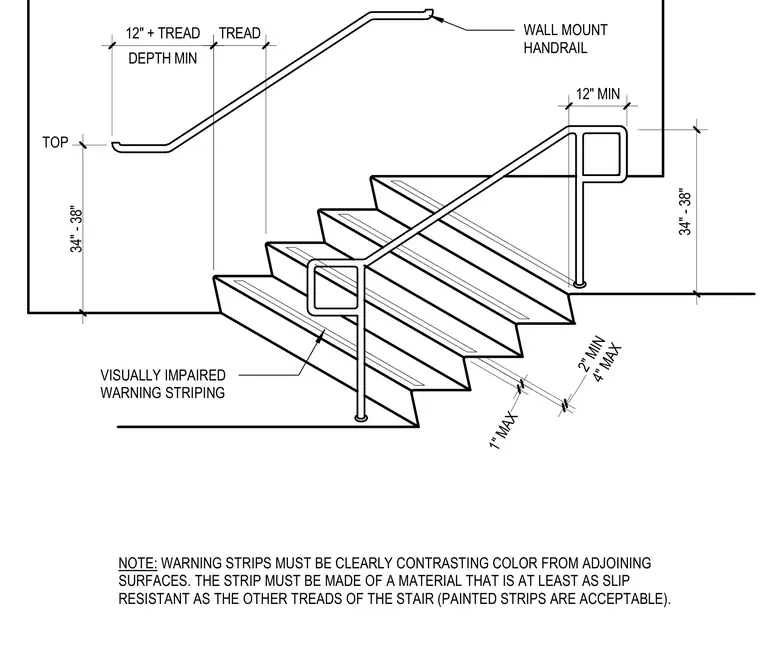

VISUALLY IMPAIRED WARNING STRIPING NOTE: WARNING STRIPS MUST BE CLEARLY CONTRASTING COLOR FROM ADJOINING SURFACES. THE STRIP MUST BE MADE OF A MATERIAL THAT IS AT LEAST AS SLIP RESISTANT AS THE OTHER TREADS OF THE STAIR (PAINTED STRIPS ARE ACCEPTABLE). WALL MOUNT HANDRAIL 34" - 38" TREAD 34" - 38" 1" MAX 2" MIN 4" MAX DEPTH MIN 12" + TREAD 12" MIN TOP
