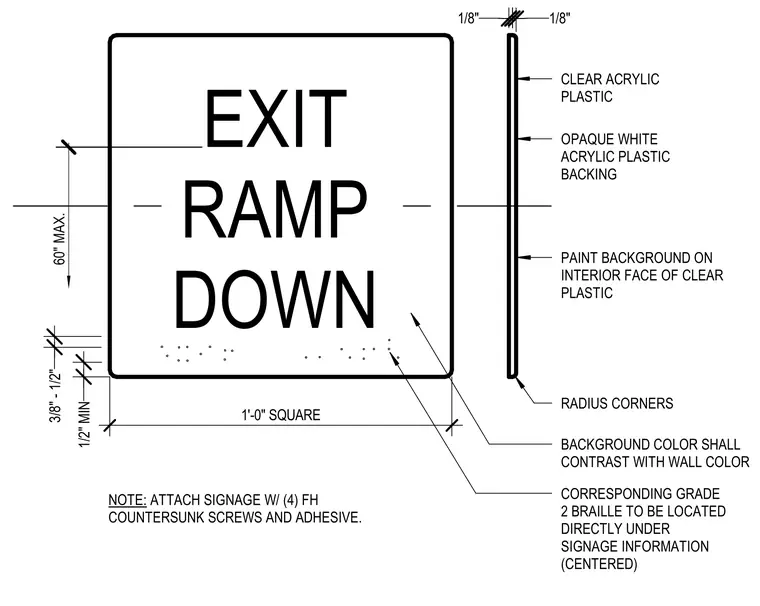

This tactile exit sign features a one-foot square clear acrylic plastic face with radius corners and a painted background on its interior face to contrast with the wall color. An opaque white acrylic plastic backing sits behind the clear face, and corresponding Grade 2 braille is located directly centered underneath the signage information. The assembly is installed using four flat head countersunk screws and adhesive, positioned at a maximum height of sixty inches with a bottom clearance between three-eighths and one-half inch.
EXIT RAMP DOWN 1/8" 1/8" 1'-0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX.
