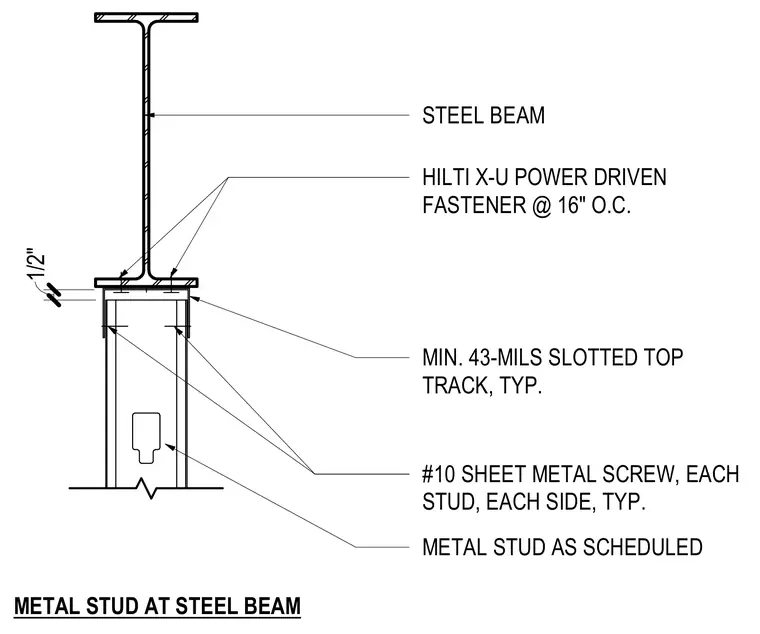

A cold-formed metal stud wall terminates below a structural steel beam using a minimum 43-mils slotted top track. The slotted track is secured to the underside of the steel beam flange with half-inch Hilti X-U power-driven fasteners spaced at 16 inches on center. Individual metal studs as scheduled fit inside the top track and are fastened on each side with number 10 sheet metal screws.
METAL STUD AT STEEL BEAM STEEL BEAM MIN. 43-MILS SLOTTED TOP TRACK, TYP. 1/2" HILTI X-U POWER DRIVEN FASTENER @ 16" O.C. METAL STUD AS SCHEDULED #10 SHEET METAL SCREW, EACH STUD, EACH SIDE, TYP.
