Unobstructed forward reach ranges from a minimum of one foot three inches to a maximum of four feet zero inches above the finished floor. Obstructed forward reach ranges up to a maximum of four feet zero inches with a maximum obstruction depth of twenty-five inches. Another obstructed configuration restricts the reach range to a maximum of three feet eight inches with an obstruction depth between twenty inches and twenty-five inches, and a maximum toe clearance height of one foot eight inches.

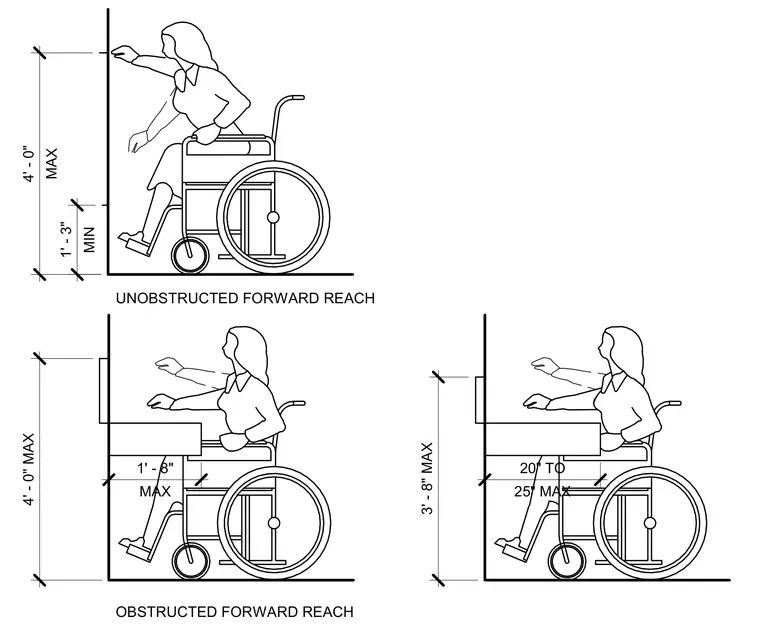

OBSTRUCTED FORWARD REACH UNOBSTRUCTED FORWARD REACH 4' - 0" MAX MIN 1' - 3" MAX 4' - 0" 3' - 8" MAX 25" MAX 20" TO MAX 1' - 8"
