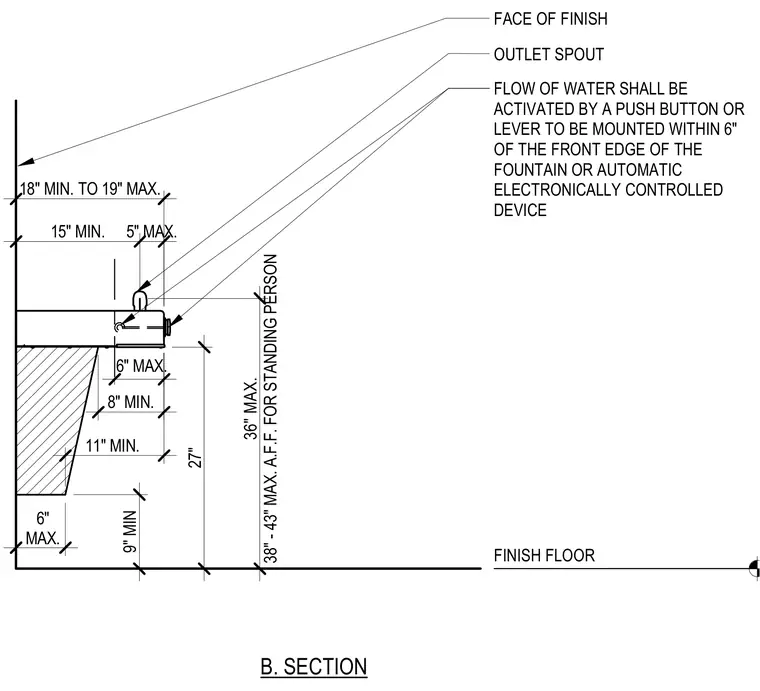

The drinking fountain is mounted to the wall with specific vertical and horizontal dimensional clearances relative to the finish floor. The outlet spout and water activation push button or lever are positioned within six inches of the front edge. The underside clearance requires a minimum height of twenty-seven inches above the finish floor with specific knee and toe space depths. Overall spout height ranges between thirty-eight and forty-three inches above the finish floor for standing persons, or thirty-six inches maximum.
MAX. 6" 9" MIN OUTLET SPOUT FLOW OF WATER SHALL BE ACTIVATED BY A PUSH BUTTON OR LEVER TO BE MOUNTED WITHIN 6" OF THE FRONT EDGE OF THE FOUNTAIN OR AUTOMATIC ELECTRONICALLY CONTROLLED DEVICE FACE OF FINISH FINISH FLOOR B. SECTION 15" MIN. 5" MAX. 18" MIN. TO 19" MAX. 6" MAX. 8" MIN. 11" MIN. 27" 38" - 43" MAX. A.F.F. FOR STANDING PERSON 36" MAX.
