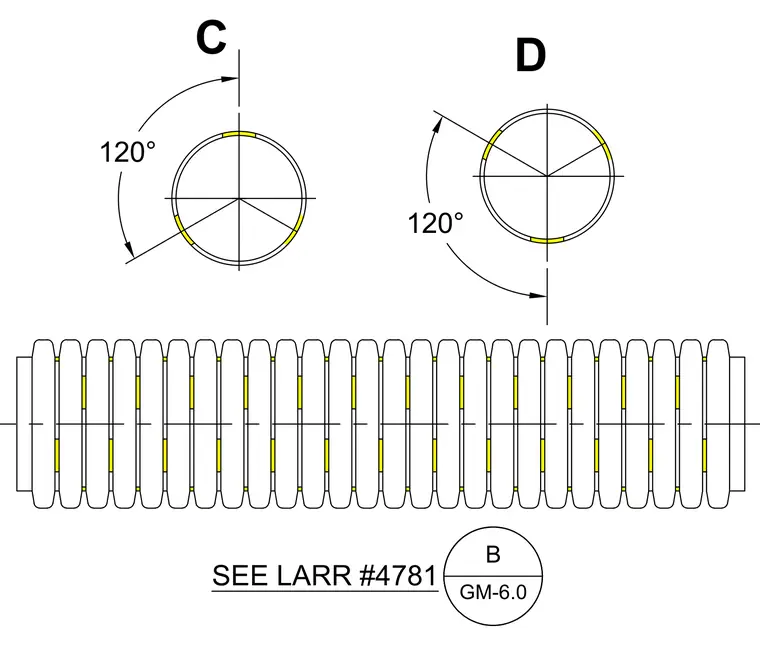

A pipe assembly includes circular cross-sections designated C and D, featuring segments spaced at one hundred twenty degrees. The elevation view incorporates a ribbed or corrugated cylindrical pipe member with alternating yellow-highlighted connection points, referencing Los Angeles Research Report number 4781.
