A Geovent low profile transition fitting connects a four-inch diameter outlet to a three-inch diameter cast iron pipe using a Fernco 1070-43 flexible coupling. The Geovent is inserted directly into the coupling without glue and secured with stainless steel band clamps. The transition fitting measures twelve inches by one inch in profile dimension.

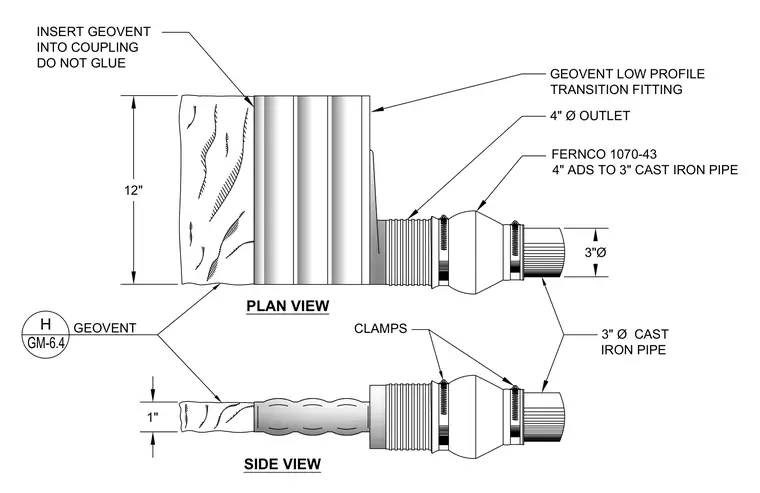

3" Ø CAST IRON PIPE GM-6.4 H GEOVENT SIDE VIEW PLAN VIEW FERNCO 1070-43 4" ADS TO 3" CAST IRON PIPE GEOVENT LOW PROFILE TRANSITION FITTING CLAMPS INSERT GEOVENT INTO COUPLING DO NOT GLUE 4" Ø OUTLET 12" 3"Ø 1"
