Architectural · G-33VVE

Dimensions of Adult-Sized Wheelchair

About this detail

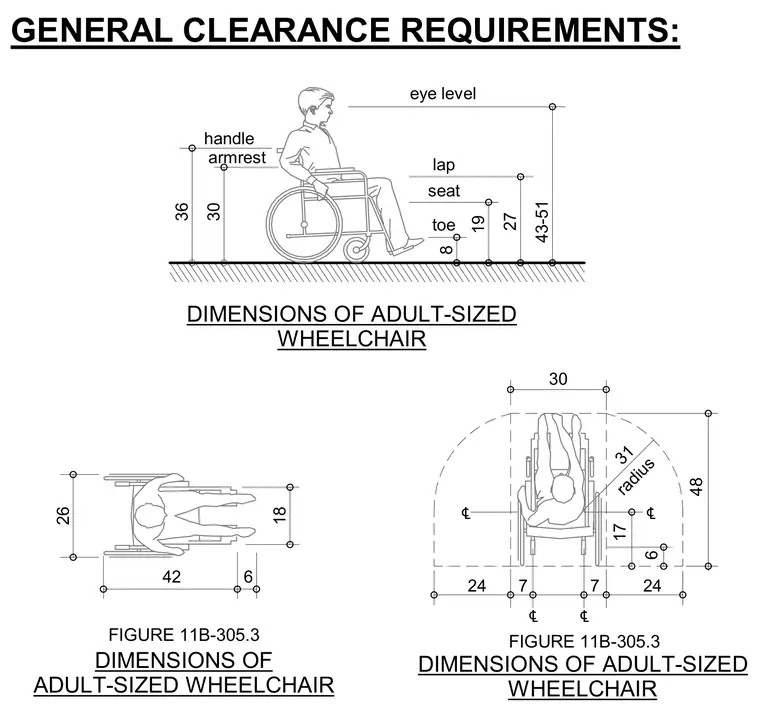

Standard dimensions and general clearance requirements for an adult-sized wheelchair. The side view defines vertical heights for the toe clearance at eight inches, seat at nineteen inches, lap at twenty-seven inches, armrest at thirty inches, handle at thirty-six inches, and eye level ranging from forty-three to fifty-one inches. Plan views provide horizontal body and clearance measurements, including a twenty-six-inch overall width and forty-eight-inch turning or approach radius with detailed centerlines.
