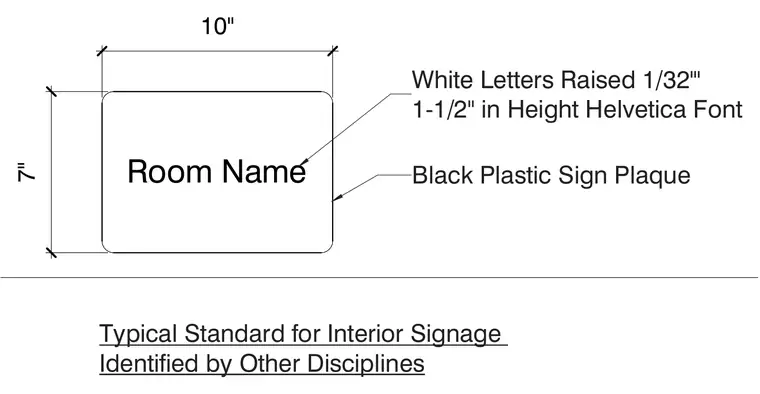

A black plastic sign plaque measuring ten inches wide by seven inches high features white letters raised one-thirty-second of an inch. The typography is set in one-and-a-half-inch Helvetica font displaying the room name.
Room Name Typical Standard for Interior Signage Identified by Other Disciplines 10" 7" White Letters Raised 1/32"' 1-1/2" in Height Helvetica Font Black Plastic Sign Plaque
