ADA Door Clearance Dimensions and Approach Layouts

About this detail

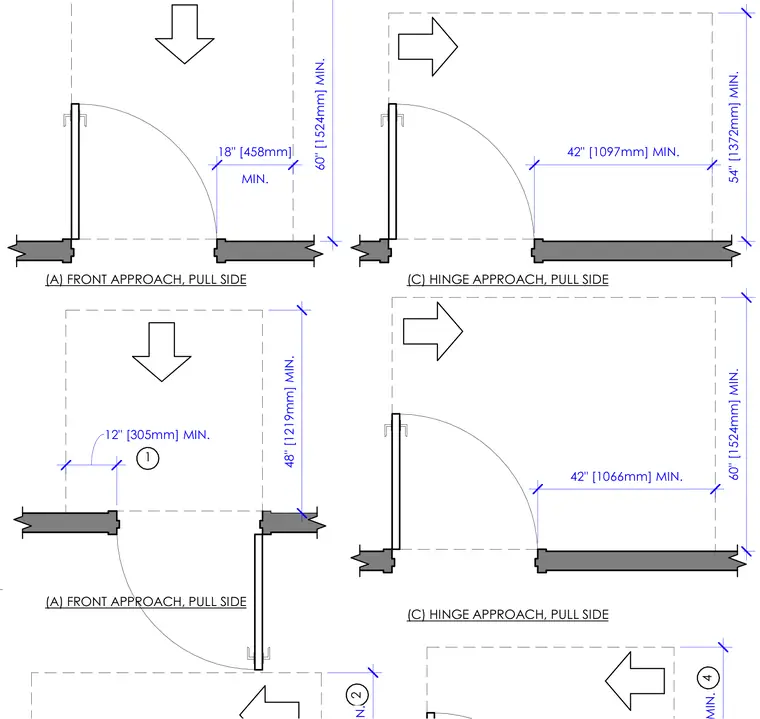

Accessible door maneuvering clearances are defined for front and hinge approaches on the pull side. Minimum clearance widths include eighteen inches, forty-two inches, and sixty inches depending on the approach direction and wall configuration. Clear floor spaces extend forty-eight inches, fifty-four inches, or sixty inches minimum perpendicular to the doorway.
