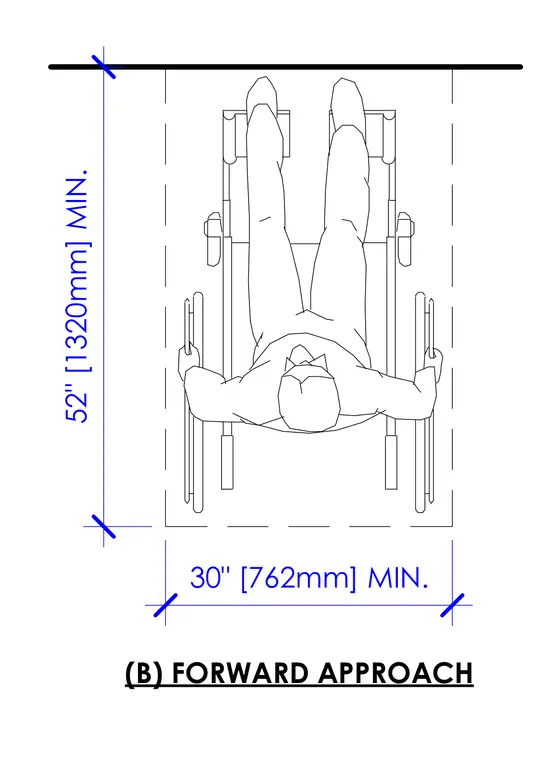

A wheelchair forward approach requires a minimum clear floor space of 30 inches wide by 52 inches long. These dimensions establish the baseline clearance needed for accessibility compliance at fixtures and elements.
(B) FORWARD APPROACH 52" [1320mm] MIN. 30" [762mm] MIN.
