A mounting configuration for rail wire netting utilizes band wires measuring 34.0 by 2.3 millimeters in diameter and thickness. The band wires are spaced at 200 millimeters on center across the netting assembly.

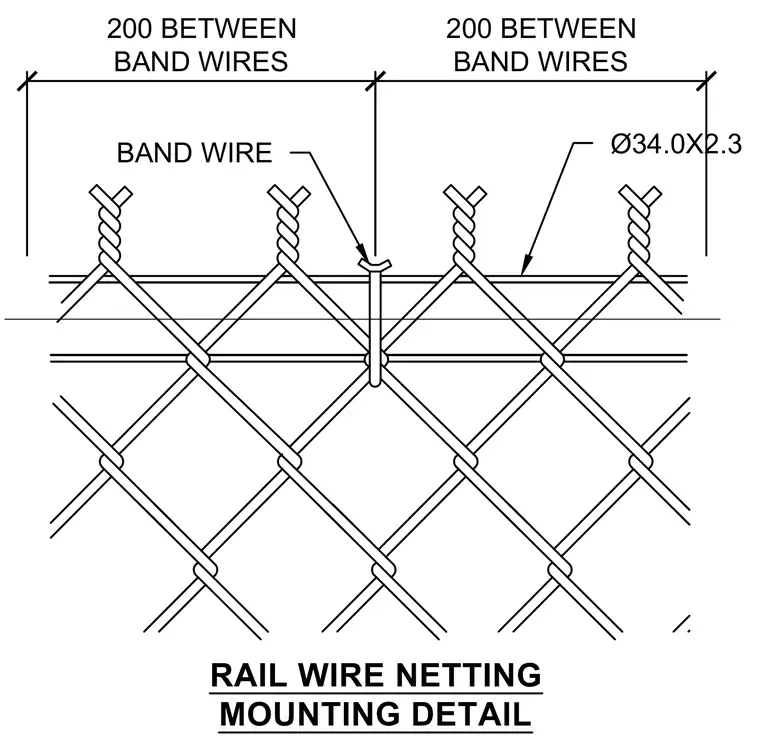

RAIL WIRE NETTING MOUNTING DETAIL BAND WIRE Ø34.0X2.3 200 BETWEEN BAND WIRES 200 BETWEEN BAND WIRES
