Waterproofing Membrane at Elevator Pit Subslab and Walls

Materials

Elements

About this detail

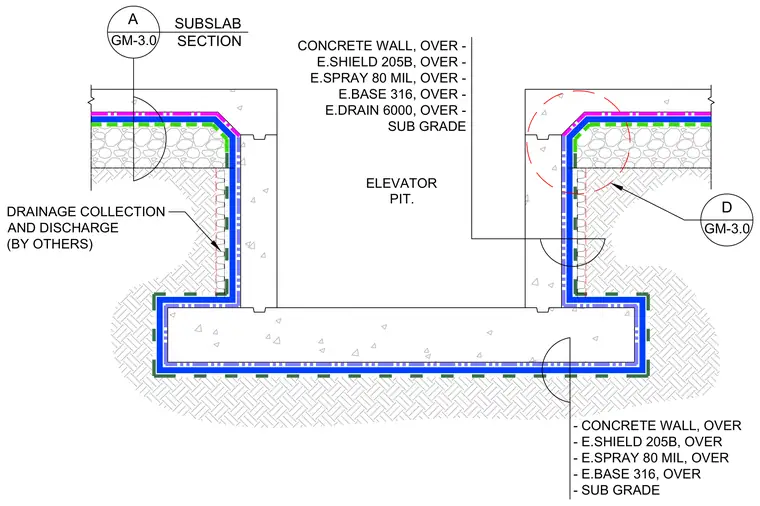

This subslab section details the waterproofing and drainage assembly at an elevator pit. The concrete pit walls and subslab receive an exterior layer of E.Base 316, an 80 mil E.Spray coating, E.Shield 205B, and an E.Drain 6000 drainage composite against the subgrade. Subgrade drainage collection and discharge is provided by others.
