Accessibility signage details show requirements for unisex restroom doors and parking spaces per 2025 California Building Code. The restroom sign features a twelve-inch diameter circle with a superimposed triangle, fabricated from one-quarter-inch thick material with eased or chamfered edges and vertices radiused between one-eighth and one-quarter inch. The sign is mounted at a centerline height between fifty-eight and sixty inches above finished floor, aligned with the centerline of the door. The international symbol of accessibility is also detailed for pavement marking, measuring thirty-six inches wide and aligned with the end of the parking space in white paint over a blue field background.

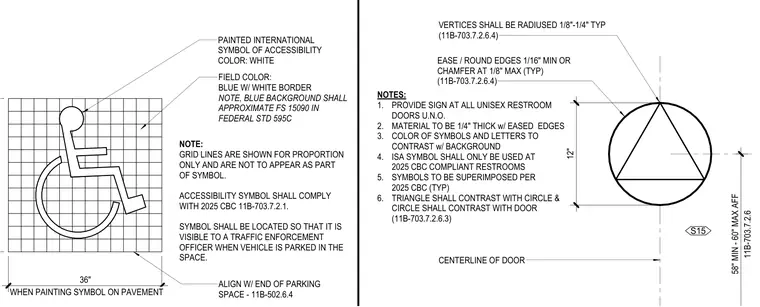

12" 11B-703.7.2.6 58" MIN - 60" MAX AFF CENTERLINE OF DOOR VERTICES SHALL BE RADIUSED 1/8"-1/4" TYP (11B-703.7.2.6.4) S15 EASE / ROUND EDGES 1/16" MIN OR CHAMFER AT 1/8" MAX (TYP) (11B-703.7.2.6.4) 1. 2. 3. 4. 5. 6. NOTES: PROVIDE SIGN AT ALL UNISEX RESTROOM DOORS U.N.O. MATERIAL TO BE 1/4" THICK w/ EASED EDGES COLOR OF SYMBOLS AND LETTERS TO CONTRAST w/ BACKGROUND ISA SYMBOL SHALL ONLY BE USED AT 2025 CBC COMPLIANT RESTROOMS SYMBOLS TO BE SUPERIMPOSED PER 2025 CBC (TYP) TRIANGLE SHALL CONTRAST WITH CIRCLE & CIRCLE SHALL CONTRAST WITH DOOR (11B-703.7.2.6.3) FIELD COLOR: BLUE W/ WHITE BORDER NOTE, BLUE BACKGROUND SHALL APPROXIMATE FS 15090 IN FEDERAL STD 595C NOTE: GRID LINES ARE SHOWN FOR PROPORTION ONLY AND ARE NOT TO APPEAR AS PART OF SYMBOL. ACCESSIBILITY SYMBOL SHALL COMPLY WITH 2025 CBC 11B-703.7.2.1. SYMBOL SHALL BE LOCATED SO THAT IT IS VISIBLE TO A TRAFFIC ENFORCEMENT OFFICER WHEN VEHICLE IS PARKED IN THE SPACE. PAINTED INTERNATIONAL SYMBOL OF ACCESSIBILITY COLOR: WHITE WHEN PAINTING SYMBOL ON PAVEMENT 36" ALIGN W/ END OF PARKING SPACE - 11B-502.6.4
